₹10,299.00

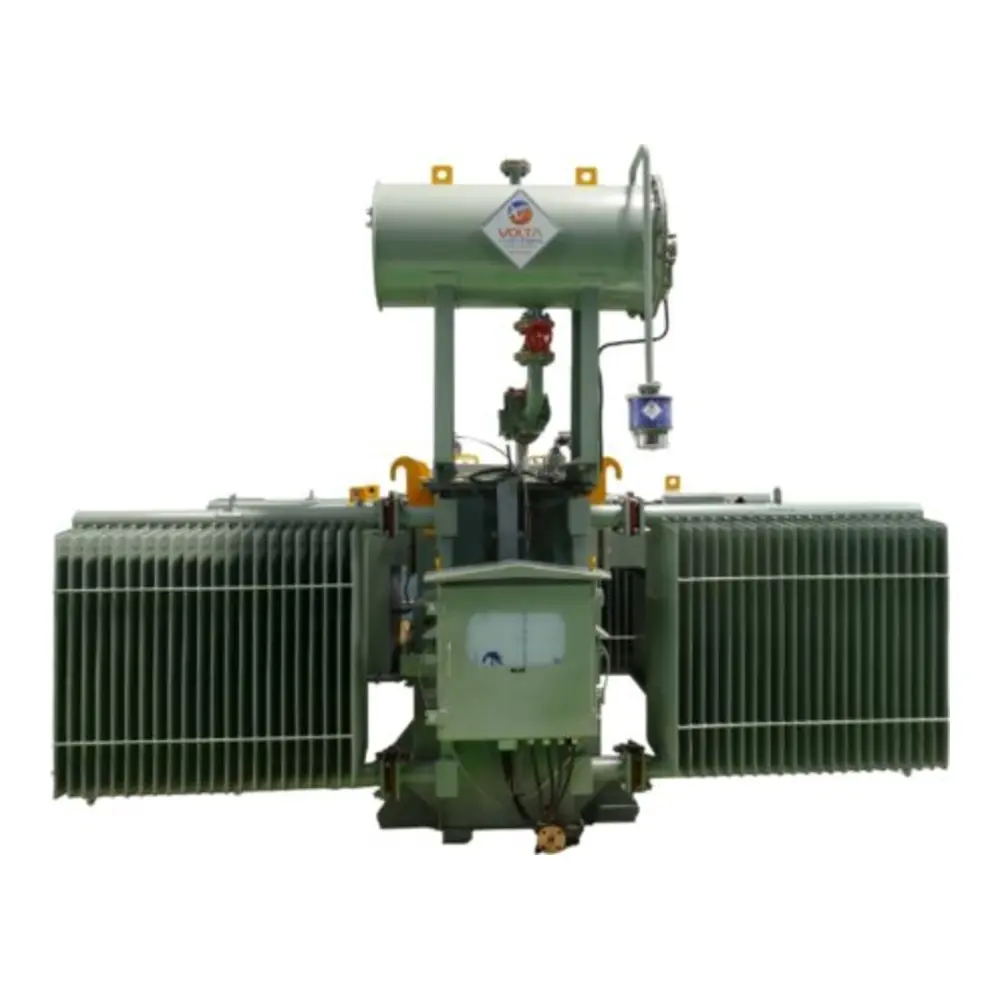

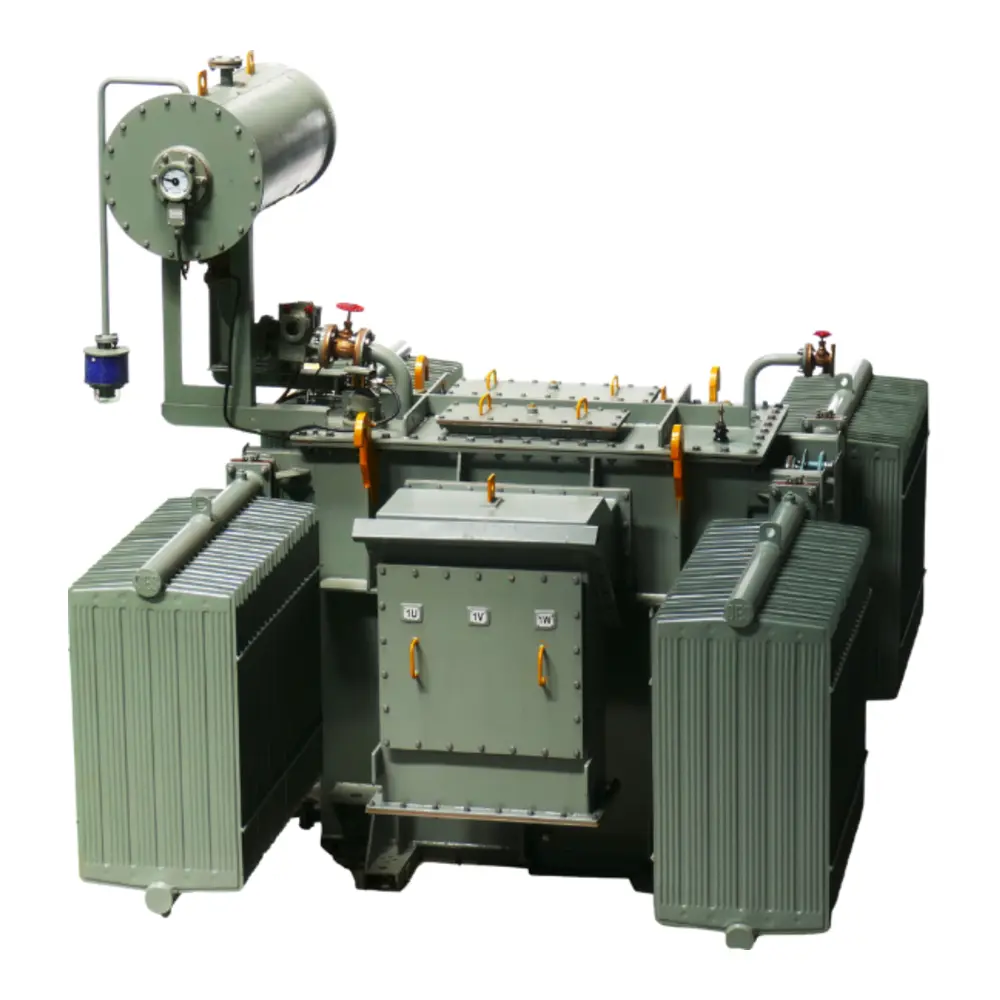

The Solar / Wind Inverter Duty Transformer is specially designed for renewable energy applications to efficiently step up or step down voltage between solar inverters, wind turbines, and the electrical grid. Built to handle harmonic loads, voltage fluctuations, and continuous operation, these transformers provide high efficiency, excellent reliability, and long service life for solar and wind power projects.
| Parameter | Available Range |
| Capacity | 100 kVA to 20 MVA |
| High voltage | 11 kV to 33 kV |
| Low voltage | 380 V, 400 V, 415 V, 433 V, 440 V, 600 V and 800 V |
| Cooling | ONAN |
| Tap changer | OCTC or OLTC |
| Customisation | Customised voltage classes and configurations available according to project requirements |
Harmonic suppression: Designed to resist harmonic currents produced by inverter and rectifier systems, helping maintain clean power output.
High efficiency: Low-loss cores and advanced insulation systems support efficient operation and long service life.
Thermal stability: Enhanced cooling provisions help the transformer manage the higher thermal loads associated with renewable-energy applications.
Robust construction: Weatherproof enclosures support outdoor installation in solar farms and wind-power stations.
Customisation options: Voltage ratings and transformer configurations can be selected to match the requirements of solar and wind projects.
Capacity: 100 kVA to 20 MVA
High voltage: 11 kV to 33 kV
Low voltage: 380 V, 400 V, 415 V, 433 V, 440 V, 600 V and 800 V
Cooling: ONAN
Tap changer: OCTC or OLTC
Customisation: Customised voltage classes and project-specific configurations
Solar power plants: Voltage conversion between solar inverter output and the grid-connection system.
Wind power stations: Voltage conversion and grid integration for wind-turbine inverter systems.
Renewable energy projects: Converter-duty service where harmonic currents and variable generation create specialised electrical and thermal demands.
Outdoor installations: Weather-exposed solar-farm and wind-power applications requiring robust enclosure construction.
Solar and wind inverter duty transformers play an important role in renewable-energy systems by converting the low voltage produced by solar panels or wind turbines into a higher voltage suitable for grid connection. These converter-duty transformers are specifically engineered for the harmonic currents, thermal loading and operating conditions associated with inverter and rectifier equipment.
The available range extends from 100 kVA to 20 MVA. Published high-voltage ratings cover 11 kV to 33 kV, while low-voltage options include 380 V, 400 V, 415 V, 433 V, 440 V, 600 V and 800 V. ONAN cooling is offered, with OCTC and OLTC tap-changing options. Customised voltage classes can be developed according to project requirements.
Low-loss cores, advanced insulation and enhanced cooling provisions support efficient operation and thermal stability. Weatherproof construction makes the transformers suitable for outdoor solar-farm and wind-power installations. Contact Bijali Bazaar with the required capacity, voltage ratio, inverter details and installation conditions to identify the appropriate configuration.
Capacity: Required capacity in kVA or MVA
Voltage: Required input and output voltage
Inverter: Solar or wind inverter output details
Load: Expected harmonic profile and loading conditions
Tap changer: OCTC or OLTC preference
Installation: Indoor or outdoor environment
Standards: Applicable technical standards and project requirements
